Diodes

self-powered SR device

Bridge (SSRB)
Array

LV Diode

ZSH series
DAM series

HV Diode

for PSU
for AT-IGN.
for AT-IGN (Pb-F)

Alternator Diode

Super Low Loss Diode

NRND･Discontinued

NRND
Discontinued

Download

Status List

Features of Diodes

We have wide variety of diodes such as alternator diodes (super low loss type) that self-powered synchronous rectifying device is molded in conventional package, surge suppressor diode for automotive with various packages, and environmental friendly Lead (Pb)-free High Voltage axial diode. They are used mainly for in-house products.

Self-powered Synchronous Rectifying device

Higher efficiency with Changing Diode to Synchronous Rectifying MOSFET
ONE Package solution for Synchronous Rectifying
Replaceable with compatible pin configureation

BDd

PKG

Feature

Internal Block

Bridge (SSRB)

Array

SJ-MOSFETs SR Array
(Quad, Dual)
Self Powered, External Power Supply free
Compatible Pin configureation with bridge diode (SIP-4)
V_DS = 600V*
R_DSON(typ.) = 37/70mΩ*

*subject to change without notice

Block conf

Surge Suppressor Diodes for automotive application

ZSH Series (Surge Suppressor Diodes for load dump)，
DAM Series (Surge Suppressor Diodes) 2 Lineups

Application

Circuit protection from excessive surge voltages
Surge voltage protection for automotive electrical components

ZSH Series (Surge Suppressor Diodes for load dump)

ZSH5MAZ/ZSH8MD/ZSH5MT/ZSH5MV

I_RSM = 70 ~ 130A, at 10/10,000µs waveform
Meets ISO16750-2 surge specification (Varied by test condition)
Small package
AEC-Q101 qualified
RoHS compliant

DAM Series (Surge Suppressor Diodes)

DAM1MB/DAM2MB/DAM3MB

P_RSM = 400W/600W/1200W，at 10/1,000µs waveform
Molding compound equivalent to UL 94 V-0
MSL equivalent to level 1
AEC-Q101 qualified
RoHS compliant

Alternator Diodes

SLLD (Super Low Loss Diode) MSM Series

Application

Rectifying element for passenger car alternator

MSM Series (SLLD)

MSM35J22/R,MSM50J22/R

V_F = 0.3V/0.12V
I_F = 35A/50A
RoHS compliant

Products

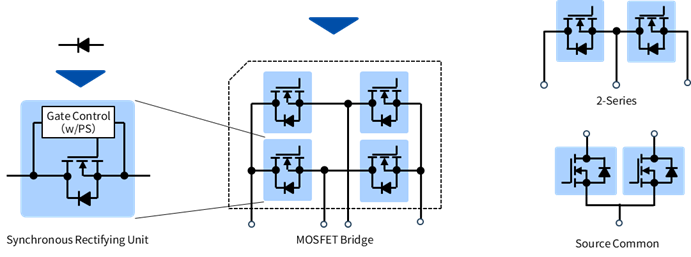

Self-powered Synchronous Rectifying device [under development]

SJ-MOSFETs Synchronous Rectifying device
with controler driver & external power free
4-MOSFET Bridge, 2-MOSFET series connection,
source common(plan)
Pin configuration is same as bridge diode
V_DS：600V，R_DSON(typ.): 37mΩ, 70mΩ

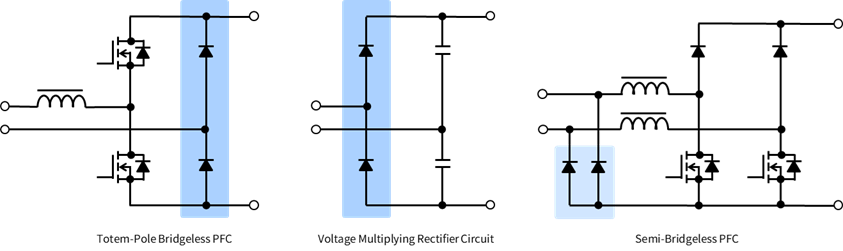

Application: replace diodes to synchronous rectifying
Quad Bridge: Single-phase full-wave rectification
Dual Series: Totempole slow leg, Voltage multiplying rectification
Dual source common : semi-bridge-less PFC

BlockConf

Target Specification　　The below table is subject to change without notice.

Configuration	Type name	Status	Data Sheet	V_RRM [ V ]	R_DSON (typ.) [ mΩ ]	I_F(AV)*1 [ A ]	I_FSM*2 [ A ]	I_R*2 [ uA ]	T_stg [ ℃ ]	Package L x H x D [ mm ]
Quad Bridge	MSB15A6	under development	Printing	600	70	15	400	TBD	-55 to 150	30.0 x 21.0 x 4.6 SIP-4
Quad Bridge	MSB25A6	under development	Printing	600	37	25	550	320	-55 to 150	30.0 x 21.0 x 4.6 SIP-4
2-Series Connection	MSB15A6L MSB15A6N	under development	Printing	600	70	15	400	TBD	-55 to 150	30.0 x 21.0 x 4.6 SIP-4
2-Series Connection	MSB25A6L MSB25A6N	under development	Printing	600	37	25	550	160	-55 to 150	30.0 x 21.0 x 4.6 SIP-4
Dual Source Common	TBD	Plan	TBD	600	70	TBD	TBD	TBD	-55 to 150	TBD
Dual Source Common	TBD	Plan	TBD	600	37	TBD	TBD	TBD	-55 to 150	TBD

*1: for reference

*2: at each unit

For the specification or Sample availability, please contact your nearest sales office.

ZSH Series (Surge Suppressor Diodes for road dump)

Original Package

series	Type Name	Data Sheet	Spice Model	Vz [ V ]	P_RSM [ W ]	Package L x D x H [ mm ]
ZSH5MA	ZSH5MA27	PDF	*2	27	3000	13.1 x 9.6 x 4.4
ZSH5MAZ	ZSH5MAZ27	PDF	ZIP	27	3400	13.1 x 9.6 x 4.4
ZSH5MC	ZSH5MC27	PDF	*2	27	3200	13.1 x 9.6 x 4.4
ZSH8MD	ZSH8MD27	PDF	ZIP	27	5700	13.1 x 9.6 x 6.0
ZSH8MD	ZSH8MD40	PDF	*2	40	5700	13.1 x 9.6 x 6.0
ZSH5MT	ZSH5MT27C	PDF	*2	27	3400	15.0 x 10.0 x 4.4 DO-218 *1
	ZSH5MT27(Z)	PDF	*2	27	4300	15.0 x 10.0 x 4.4 DO-218 *1
	ZSH5MT40C	PDF	*2	40	4300	15.0 x 10.0 x 4.4 DO-218 *1
	ZSH5MT48C	PDF	*2	48	4300	15.0 x 10.0 x 4.4 DO-218 *1
ZSH5MV	ZSH5MV14	PDF	*2	14	4300	6.5 x 9.0 x 9.0
ZSH5MV	ZSH5MV27	PDF	ZIP	27	4300	6.5 x 9.0 x 9.0

*1: Similar soldering pad

*2: Please contact your nearest sales office.

DAM Series (Surge Suppressor Diodes)

Surface Mount Type

DAM1MB series, DAM2MB series, DAM3MB series

series	Type Name	Data Sheet	Spice Model	Vz [ V ]^*2	P_RSM [ W ]	Package L x D x H [ mm ]
DAM1MB	DAM1MB12	PDF	ZIP	12	600	4.7 x 2.5 x 2.0
	DAM1MB13	PDF	ZIP	13	600	4.7 x 2.5 x 2.0
	DAM1MB15	PDF	ZIP	15	600	4.7 x 2.5 x 2.0
	DAM1MB16	PDF	ZIP	16	600	4.7 x 2.5 x 2.0
	DAM1MB18	PDF	ZIP	18	600	4.7 x 2.5 x 2.0
	DAM1MB20	PDF	ZIP	20	600	4.7 x 2.5 x 2.0
	DAM1MB22	PDF	ZIP	22	600	4.7 x 2.5 x 2.0
	DAM1MB24	PDF	ZIP	24	600	4.7 x 2.5 x 2.0
	DAM1MB27	PDF	ZIP	27	600	4.7 x 2.5 x 2.0
	DAM1MB30	PDF	ZIP	30	600	4.7 x 2.5 x 2.0
	DAM1MB33	PDF	ZIP	33	600	4.7 x 2.5 x 2.0
	DAM1MB36	PDF	ZIP	36	600	4.7 x 2.5 x 2.0
	DAM1MB39	PDF	ZIP	39	600	4.7 x 2.5 x 2.0
	DAM1MB43	PDF	ZIP	43	600	4.7 x 2.5 x 2.0
	DAM1MB47	PDF	ZIP	47	600	4.7 x 2.5 x 2.0
	DAM1MB51	PDF	ZIP	51	600	4.7 x 2.5 x 2.0
	DAM1MB68	PDF	ZIP	68	600	4.7 x 2.5 x 2.0
	DAM1MB75	PDF	ZIP	75	600	4.7 x 2.5 x 2.0
	DAM1MB82	PDF	ZIP	82	600	4.7 x 2.5 x 2.0

series	Type Name	Data Sheet	Spice Model	Vz [ V ]^*2	P_RSM [ W ]	Package L x D x H [ mm ]
DAM2MB	DAM2MB12	PDF	ZIP	12	1200	5.4 x 3.6 x 2.3JEDEC (DO-214AA)
	DAM2MB13	PDF	ZIP	13	1200	5.4 x 3.6 x 2.3JEDEC (DO-214AA)
	DAM2MB15	PDF	ZIP	15	1200	5.4 x 3.6 x 2.3JEDEC (DO-214AA)
	DAM2MB16	PDF	ZIP	16	1200	5.4 x 3.6 x 2.3JEDEC (DO-214AA)
	DAM2MB18	PDF	ZIP	18	1200	5.4 x 3.6 x 2.3JEDEC (DO-214AA)
	DAM2MB20	PDF	ZIP	20	1200	5.4 x 3.6 x 2.3JEDEC (DO-214AA)
	DAM2MB22	PDF	ZIP	22	1200	5.4 x 3.6 x 2.3JEDEC (DO-214AA)
	DAM2MB24	PDF	ZIP	24	1200	5.4 x 3.6 x 2.3JEDEC (DO-214AA)
	DAM2MB27	PDF	ZIP	27	1200	5.4 x 3.6 x 2.3JEDEC (DO-214AA)
	DAM2MB30	PDF	ZIP	30	1200	5.4 x 3.6 x 2.3JEDEC (DO-214AA)
	DAM2MB33	PDF	ZIP	33	1200	5.4 x 3.6 x 2.3JEDEC (DO-214AA)
	DAM2MB36	PDF	ZIP	36	1200	5.4 x 3.6 x 2.3JEDEC (DO-214AA)
	DAM2MB39	PDF	ZIP	39	1200	5.4 x 3.6 x 2.3JEDEC (DO-214AA)
	DAM2MB43	PDF	ZIP	43	1200	5.4 x 3.6 x 2.3JEDEC (DO-214AA)
	DAM2MB47	PDF	ZIP	47	1200	5.4 x 3.6 x 2.3JEDEC (DO-214AA)
	DAM2MB51	PDF	ZIP	51	1200	5.4 x 3.6 x 2.3JEDEC (DO-214AA)
	DAM2MB68	PDF	ZIP	68	1200	5.4 x 3.6 x 2.3JEDEC (DO-214AA)
	DAM2MB75	PDF	ZIP	75	1200	5.4 x 3.6 x 2.3JEDEC (DO-214AA)
	DAM2MB82	PDF	ZIP	82	1200	5.4 x 3.6 x 2.3JEDEC (DO-214AA)

series	Type Name	Data Sheet	Spice Model	Vz [ V ]^*2	P_RSM [ W ]	Package L x D x H [ mm ]
DAM3MB	DAM3MB12	PDF	ZIP	12	1800	7.6 x 4.0 x 2.5
	DAM3MB13	PDF	ZIP	13	1800	7.6 x 4.0 x 2.5
	DAM3MB15	PDF	ZIP	15	1800	7.6 x 4.0 x 2.5
	DAM3MB16	PDF	ZIP	16	1800	7.6 x 4.0 x 2.5
	DAM3MB18	PDF	ZIP	18	1800	7.6 x 4.0 x 2.5
	DAM3MB20	PDF	ZIP	20	1800	7.6 x 4.0 x 2.5
	DAM3MB22	PDF	ZIP	22	1800	7.6 x 4.0 x 2.5
	DAM3MB24	PDF	ZIP	24	1800	7.6 x 4.0 x 2.5
	DAM3MB27	PDF	ZIP	27	1800	7.6 x 4.0 x 2.5
	DAM3MB30	PDF	ZIP	30	1800	7.6 x 4.0 x 2.5
	DAM3MB33	PDF	ZIP	33	1800	7.6 x 4.0 x 2.5
	DAM3MB36	PDF	ZIP	36	1800	7.6 x 4.0 x 2.5
	DAM3MB39	PDF	ZIP	39	1800	7.6 x 4.0 x 2.5
	DAM3MB43	PDF	ZIP	43	1800	7.6 x 4.0 x 2.5
	DAM3MB47	PDF	ZIP	47	1800	7.6 x 4.0 x 2.5
	DAM3MB51	PDF	ZIP	51	1800	7.6 x 4.0 x 2.5
	DAM3MB68	PDF	ZIP	68	1800	7.6 x 4.0 x 2.5
	DAM3MB75	PDF	ZIP	75	1800	7.6 x 4.0 x 2.5
	DAM3MB82	PDF	ZIP	82	1800	7.6 x 4.0 x 2.5

*3: Some Vz is order production. Please see Status List.

High Voltage Diode - Power Supply Series

Resin Mold Package

Type	Type Name	Data Sheet	Spice Model	I_F(AV) [ mA ]	V_RRM [ V ]	Lead Dia. [ mm ]	Body Length [ mm ]
Axial Lead Type	DHM3T30	PDF	*4	3	3000	Φ0.6	5
	DHM3P40	PDF	ZIP	3	4000	Φ0.6	5
	DHM3FJ60	PDF	*4	3	6000	Φ0.5	6.5
	DHM3G80	PDF	*4	3	8000	Φ0.5	6.5
	DHM3UM80	PDF	*4	3	8000	Φ0.5	6.55
	DHM3J120	PDF	*4	3	12000	Φ0.5	10

*4: Please contact your nearest sales office.

High Voltage Diode - Automobile Ignition Series

Resin Mold Package
Automobile Ignition Series

Type	Type Name	Data Sheet	Spice Model	I_F(AV) [ mA ]	V_RRM [ V ]	Lead Dia. [ mm ]	Body Length [ mm ]
Axial Lead Type	DHM10A30	PDF	*5	10	3000	Φ0.5	6.5
	DHM30A10	PDF	*5	30	1000	Φ0.5	5
	DHM30A20	PDF	*5	30	2000	Φ0.5	5
	DHM30A25	PDF	ZIP	30	2500	Φ0.5	5
	DHM30A30	PDF	*5	30	3000	Φ0.5	6.5
	DHM30A40	PDF	*5	30	4000	Φ0.6	8

*5: Please contact your nearest sales office.

High Voltage Diode - Automobile Ignition Series (Pb Free)

Resin Mold Package
Automobile Ignition Series
Lead(Pb) Free

Type	Type Name	Data Sheet	I_F(AV) [ mA ]	V_RRM [ V ]	Lead Dia. [ mm ]	Body Length [ mm ]
Axial Lead Type	DHM30A10E	PDF	30	1000	Φ0.5	5
	DHM30A20E	PDF	30	2000	Φ0.5	5
	DHM30A25E	PDF	30	2500	Φ0.5	5
	DHM30A30E	PDF	30	3000	Φ0.5	6.5
	DHM30A40E	PDF	30	4000	Φ0.6	8

Alternator Diodes

SLLD（Supper Low Loss Diode）
Press-fit Package

Type	Type Name	Data Sheet	I_F(AV) [A] *1	V_F [V] *2	V_RSM [V] *3	Diameter [mm]	Height [mm]	Image
Resin mold Package	MSM35J22 MSM35J22R	PDF	35	0.3	58	12.75	29.5 29.5
Resin mold Package	MSM50J22 MSM50J22R	PDF	50	0.12	85	12.75	29.5 29.5

*1: Tj≦175℃, Sigle phase Sine half wave

*2: I_F=100A, RT

*3: Conditions: C=75mF, R=1.4ohm, τ=100ms, 1 cycle, with heat sink, at Tc=25℃

For the above SLLD, please contact your nearest sales office.

Not For New Design

Not For New Design | Load Dump surge supplessor

ZSH Series

Orignal Package

Type	Type Name	Vz [ V ]	P_RSM [ W ]	Package L x D x H [ mm ]	Image
Orignal Package	ZSH5MT53C	53	4300	15.0 x 10.0 x 4.4 DO-218
Orignal Package	ZSH5ME27	27	3200	12.0 x 9.6 x 4.3

Please contact us for detail.

Discontinued Parts

Discontinued Parts | General-Use Rectifer Diodes

Axial Lead Type

Type	Type Name	I_F(AV) [ A ]	V_RRM [ V ]	Lead Dia. [ mm ]	Body Length [ mm ]
Glass Mold Package	H14	1.0	100/200/300/400/500/ 600/800/1000	Φ0.8	5MAX
	V06	1.1	200/400/600/800	Φ0.8	5MAX
	V03	1.3	200/400/600/800	Φ0.8	5MAX
	U05	2.5	100/200/400/600/800	Φ1.2	7MAX
	U15	3.0	100/200/400/600/800	Φ1.2	7MAX
Resin Mold Package	DSA3A	3.0	100/200/400	Φ1.2	7MAX

Please contact us for detail.

Surface Mount Type

Type	Type Name	I_F(AV) [ A ]	V_RRM [ V ]	Package L x D x H [ mm ]	Image
Surface Mount Type	DSM1MA	1.0	100/200/400	4.7 x 2.5 x 2.0
Surface Mount Type	DSM3MA	3.0	100/200/400	7.6 x 4.0 x 2.5

Please contact us for detail.

Discontinued Parts | Fast Recovery ･ Ultra-Fast Recovery Diodes

Axial Lead Type・Glass Mold Package

Type	Type Name	trr [ μs ]	I_F(AV) [ A ]	V_RRM [ V ]	Lead Dia. [ mm ]	Body Length [ mm ]
Fast Recovery	DFG1C	0.1	1.0	100/200/400/600/800	Φ0.8	5MAX
	DFG3A	0.1	3.0	100/200/400	Φ1.2	7MAX
	V19	0.2	1.0	100/200/400/600	Φ0.8	5MAX
	H114	0.2	1.0	200/400/500/600	Φ0.8	5MAX
	DFG1A	0.2	1.0	800	Φ0.8	5MAX
	U19	0.2	2.5	100/200/400	Φ1.2	7MAX
	DFG2A	0.2	2.5	600/800	Φ1.2	7MAX
	V11	0.4	0.4	800/1000/1300/1500	Φ0.8	5MAX
	V09	0.4	0.8	200/400/600	Φ0.8	5MAX
	U07	0.4	1.0	800/1000/1300/1500	Φ1.2	7MAX
	U06	0.4	2.0	200/400/600	Φ1.2	7MAX
Ultra-Fast Recovery	DFG1D	0.05	1.0	100/200/400	Φ0.8	5MAX
Ultra-Fast Recovery	DFG1E	0.035	0.3	600/800/1000	Φ0.8	5MAX

Please contact us for detail.

Surface Mount Type

Type	Type Name	trr [ μs ]	I_F(AV) [ A ]	V_RRM [ V ]	Package L x D x H [ mm ]	Image
Ultra-Fast Recovery	DFM1MF2	0.035	1.0	200	4.7 x 2.5 x 2.0
Ultra-Fast Recovery	DFM1MF2	0.035	3.0	200	7.6 x 4.0 x 2.5

Please contact us for detail.

Discontinued Parts | Controlled Avalanche Diode

Axial Lead Type・Glass Mold Package

Type	Type Name	I_F(AV) [ A ]	V_RRM [ V ]	Lead Dia. [ mm ]	Body Length [ mm ]
Controlled Avalanche	H24	1.0	600/800/1000	Φ0.8	5MAX
	V08	1.1	400/600/800	Φ0.8	5MAX
	V07	1.3	400/600/800	Φ0.8	5MAX
	V17	1.3	50/100/200/300/400	Φ0.8	5MAX
	U17	2.5	100/200/300/400	Φ1.2	7MAX

Please contact us for detail.

Discontinued Parts | Zener Diodes

AW01 / AU01 Series

Axial Lead Type・Glass Mold Package

Type	Type Name	Vz [ V ]	P_RSM [ W ]	Lead Dia. [ mm ]	Body Length [ mm ]	Image
Zener	AW01	6/7/8/9/10/11/12/13/15/16/ 18/20/22/24/27/30/33	80	Φ0.8	5MAX
Zener	AU01	7/8/9/10/11/12/13/15/16/ 18/20/22/24/27/30/33	160	Φ1.2	7MAX

Please contact us for detail.

Discontinued Parts | Surge Supplessor Diode

DAM Series

Suface Mount Type

Type	Type Name	Vz [ V ]	P_RSM [ W ]	Package L x D x H [ mm ]	Image
Suface Mount Type	DAM1MA	12/13/15/16/18/20/22/24/27/30/ 33/36/39/43/47/51/68/75/82	600	4.7 x 2.5 x 2.0
Suface Mount Type	DAM3MA	12/13/15/16/18/20/22/24/27/30/ 33/36/39/43/47/51/68/75/82	1800	7.6 x 4.0 x 2.5

Please contact us for detail.

Discontinued Parts | High Voltage Diodes

Power Supply Series

Axial Lead Type・Resin Mold Package

Type	Type Name	I_F(AV) [mA]	V_RRM [V]	Lead Dia. [mm]	Body Length [mm]	Image
Axial Lead Type・Resin Mold Package	DHM3C140	3	14000	Φ0.6	10

Please contact us for detail.

Download

Status List

It ends about main text.

Footer menu is as follows.

Diodes

Features of Diodes

Self-powered Synchronous Rectifying device

Feature

Internal Block

Bridge (SSRB)

Array

Surge Suppressor Diodes for automotive application

ZSH Series (Surge Suppressor Diodes for load dump)，DAM Series (Surge Suppressor Diodes) 2 Lineups

Application

ZSH Series (Surge Suppressor Diodes for load dump)

DAM Series (Surge Suppressor Diodes)

Alternator Diodes

SLLD (Super Low Loss Diode) MSM Series

Application

MSM Series (SLLD)

Products

Self-powered Synchronous Rectifying device [under development]

Target Specification The below table is subject to change without notice.

ZSH Series (Surge Suppressor Diodes for road dump)

DAM Series (Surge Suppressor Diodes)

High Voltage Diode - Power Supply Series

High Voltage Diode - Automobile Ignition Series

High Voltage Diode - Automobile Ignition Series (Pb Free)

Alternator Diodes

Not For New Design

Not For New Design | Load Dump surge supplessor

ZSH Series

Discontinued Parts

Discontinued Parts | General-Use Rectifer Diodes

Axial Lead Type

Surface Mount Type

Discontinued Parts | Fast Recovery ･ Ultra-Fast Recovery Diodes

Axial Lead Type・Glass Mold Package

Surface Mount Type

Discontinued Parts | Controlled Avalanche Diode

Axial Lead Type・Glass Mold Package

Discontinued Parts | Zener Diodes

AW01 / AU01 Series

Discontinued Parts | Surge Supplessor Diode

DAM Series

Discontinued Parts | High Voltage Diodes

Power Supply Series

Download

ZSH Series (Surge Suppressor Diodes for load dump)，
DAM Series (Surge Suppressor Diodes) 2 Lineups

Target Specification　　The below table is subject to change without notice.
